Exchange 2003 Disaster Recovery: Planning and Strategies

Hello! today to learn how to perform a disaster recovery of Exchange Server 2003 or in Exchange 2003 Disaster Recovery . This procedure should be performed when an Exchange server collapses or has a hardware failure which can not continue working. This post I devider in three parts.

Part I: Making a backup or backup of the Exchange database using ntbackup.exe.

Part II: Installing Exchange Server Disaster Recovery mode.

Part III: recover or restore an Exchange database.

NOTE: For the Disaster Recovery mode installation must comply with the versions of Exchange and
Operating System for the Disaster Recovery procedure a success. Tambipén we must respect the structure
storage units, rather if there were three drives C:, D: and E: and C: was
the Exchange installation folder in D: Database (*. edb and *. stm) and E: the logs, should
retained this structure in the new Exchange server.

Part I Backup or Backup the Exchange using Ntbackup.exe BD. I recommend scheduling a task for the backup of the database is done on a schedule of less demand and did not cross with online defragmentation. In Exchange 2003 the default is used to support Shadow Copy the database and there is no need to remove the database.

Steps:

1. Login to ntbackup.exe and make a backup of the Storage Group, which includes the mailbox store and public store. The backup is performed without removing the mailbox database, Windows 2003 makes use of the Shadow Copies allowing the backup is online.
2. remember that we can set up scheduled tasks to perform backups or backup the Storage Groups. Tebemos two options: full backups every day of the week or a day full backup weekly and incremental backups six days.





Video: Backing our Microsoft Exchange Database.

Part II:
will install an Exchange Server Disaster Recovery mode. We believe that the Exchange server has failed due to a hardware issue and install a server with the same name, that is transparent to users.

1. We entered the Active Directory Users and Computers (ADUC) and look for the Exchange Server account and reset.
2. Uniting the server domain with the same Exchange server name failed.
3. Instalmos the IIS components needed for Exchange 2003. We can access: http://exchangepro.blogspot.com/2007/12/instalando-nuestro-primer-servidor.html for a list of requirements.

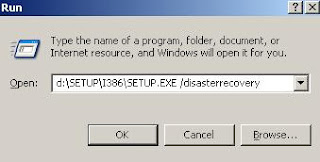

4. started the installation in Disaster Recovery mode, executing: Drive: \\ Setup \\ i386 \\ Setup.exe / disasterrecovery.
5. Sguimos the Wizard and select the installation of Microsoft Exchange and Microsoft Exchange System Management Tools Disaster Recovery mode.
6. During installation a message appears informing that you must restore the database and then restart the Exchange server. We accept and continue with the installation. Recall that recently restored the database after applying Exchange SP2 to Exchange and any needed patches.
7. the installation and proceed to install SP2 for Exchange Server 2003.
8. install SP2 for Exchange Server 2003 Disaster Recovery Mode: Drive: \\ setup \\ i386 \\ update.exe / disasterrecovery.
9. We found that this marked Microsoft Exchange and Microsoft Exchange System Management Tools Disaster Recovery mode.
10. During installation a message appears informing that you must restore the database and then restart the Exchange server. We accept and continue with the installation because after applying the SP2 patch and proceed restoring the database.
11. the installation and verify that all Microsoft Exchange services are started this. A final step is to go to ESM and checking the access and access to Microsoft Update to update the OS with the latest patches in the same way with patches for Exchange Server.
12. can access the Exchange System Manager.


Video: Installing Exchange Server Disaster Recovery mode.

Part III:
Exchange Restore using ntbackup.exe BD. Restoring a backup made before the failure of Exchange Server that was in production.

1. We entered the Exchange System Manager and found that the Mailbox Store and Public Folder Store to restore are configured so they can be overwritten by a backup. Mark the check: This database Can Be overwritten by a restore.
2. Ingre the ntbackup.exe
3. We understand the backup, we can define. We selected
4. obejtos the Storage Group to restore. In this case completely restore a server: transaction log files, the Mailbox Store and Public Folder Store.
5. define the fate of the restoration will be the same Exchange server and select the Last Restore checks of Set (Restore the Exchange logs to a temporary folder) and Mount Database after Restore which will mount the BD just finished the restoration process.
6. The restoration process is initiated and delay according to the size of the database.
7. After the restoration is completed we enter the Exchange System Manager and found that the mailboxes are restored in the Mailbox Store. We can check
8. proper restoration, using Event Viewer and looking for the next event.

Video: Restoring an Exchange database from a backup.

More information about Disaster Recovery on Exchange Server 2003: http://technet.microsoft.com/en-us/library/bb125070.aspx

Disaster Recovery in Exchange 2007: http:/ / technet.microsoft.com/en-us/library/aa998848.aspx
